ASH Sensors Uses Predictive AI to Detect Road Damage and Prevent Driving Hazards

ASH Sensors partnered with Neurons Lab to deliver an innovative proof of concept for an important city project in San Jose, Silicon Valley, using predictive AI to detect road damage before it becomes a hazard.

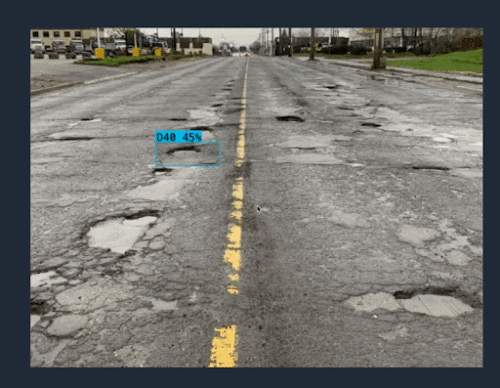

road pothole, predictive ai

Partner Overview

ASH Sensors delivers real-time remote structural health monitoring to reduce risk, minimize maintenance costs, and increase safety. It provides state-of-the-art monitoring and maintenance solutions for infrastructure.

Based in California, the company installs sensors in structures to monitor for cracks, leaks, stress, and other types of damage. Its services include continuous intelligent structural monitoring, early detection of structural problems, and real-time preventive maintenance paired with AI-enabled software.

With this in mind, ASH Sensors aimed to deliver an innovative proof of concept (PoC) for an important city project in San Jose, Silicon Valley, to detect road damage before it becomes a hazard.

Challenges

• In a highly competitive bidding process, ASH Sensors needed an innovative solution to stand out from other tenders.
• The company needed a partner with the required level of AI expertise in-house to deliver a working PoC quickly.
• Among the required and desired features for project proposals were the use of cameras and simple image recognition, but these were not yet part of the existing ASH Sensors package choices.

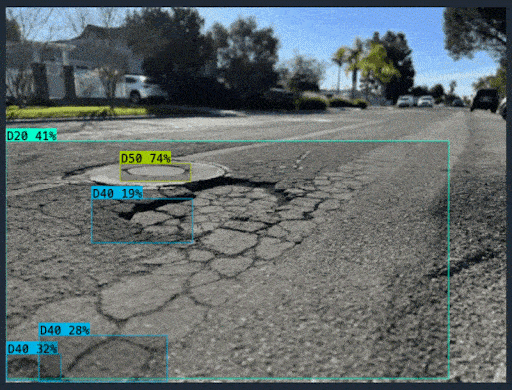

road potholes, predictive ai

Project Overview

Given city officials’ interest in exploring the potential for AI in this area, ASH Sensors was eager to collaborate on this initiative with Neurons Lab. The company was committed to exploring the possibility of leveraging cameras, sensors, and AI to detect issues for city services to address proactively.

ASH Sensors accelerated development of its patented laser surface scanning technologies including a vibration sensor, added a camera feature, and worked with Neurons Lab in a highly accelerated project.

In under four weeks – after an introduction from AWS – we discussed, defined, and collaboratively scoped out the project. We also identified valuable developer benefits that ASH Sensors was eligible for through AWS and secured all the required approvals.

The goal of the PoC was to ascertain the condition of roads, specifically to identify whether there is any damage that needs fixing.

• Road condition classifications for the AI to detect included the following categories: Longitudinal cracks, transverse cracks, alligator cracks, white line blur, crosswalk blur, and manhole covers.

Neurons Lab delivered the entire program in two sprints, each lasting only two weeks, including the final presentation.

Solution

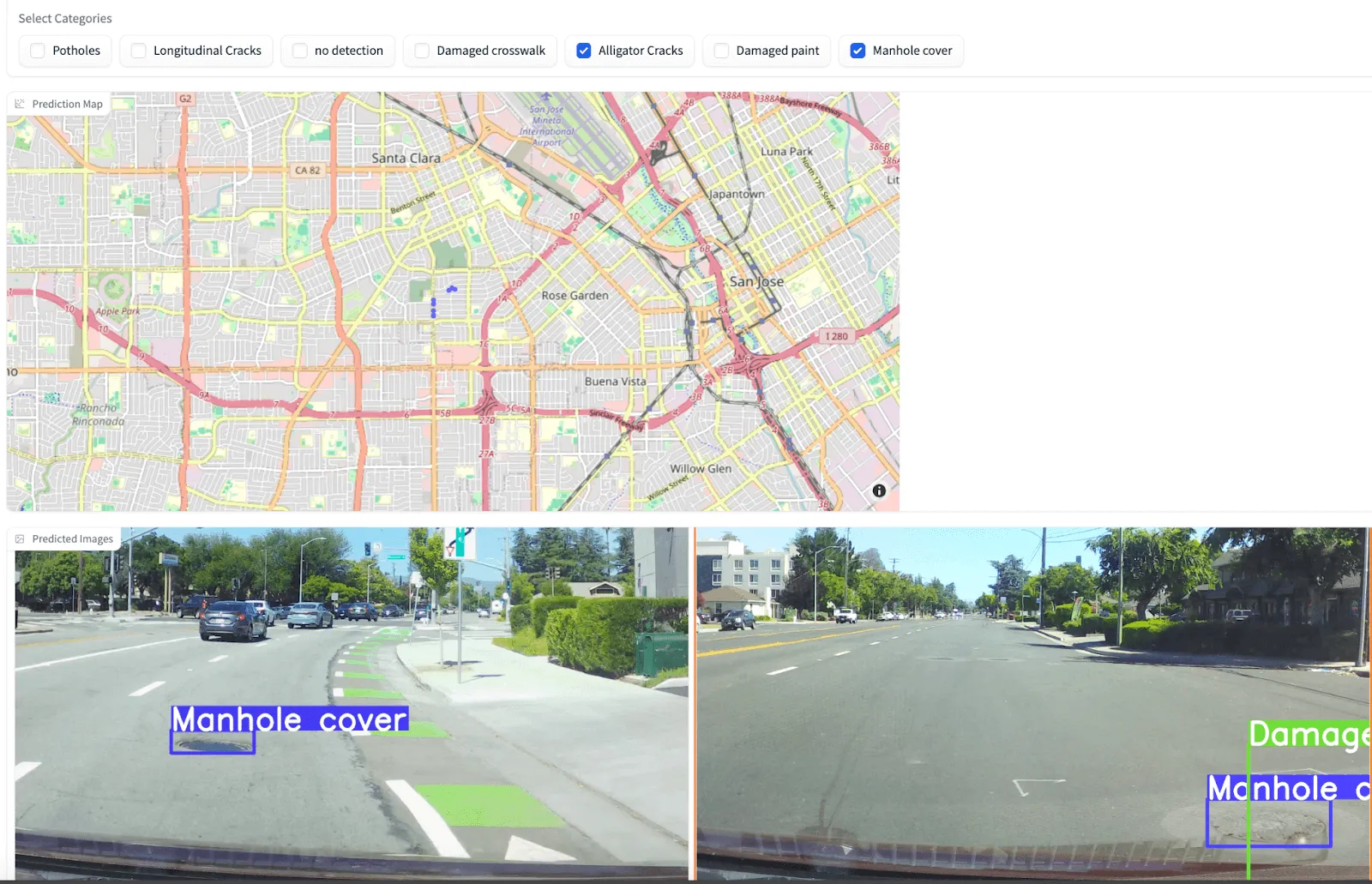

a map and roads, predictive ai

Neurons Lab developed a system that accurately predicts and identifies road damage. The solution offers precise timing and geographical mapping of issues, presented through an easy-to-use interface.

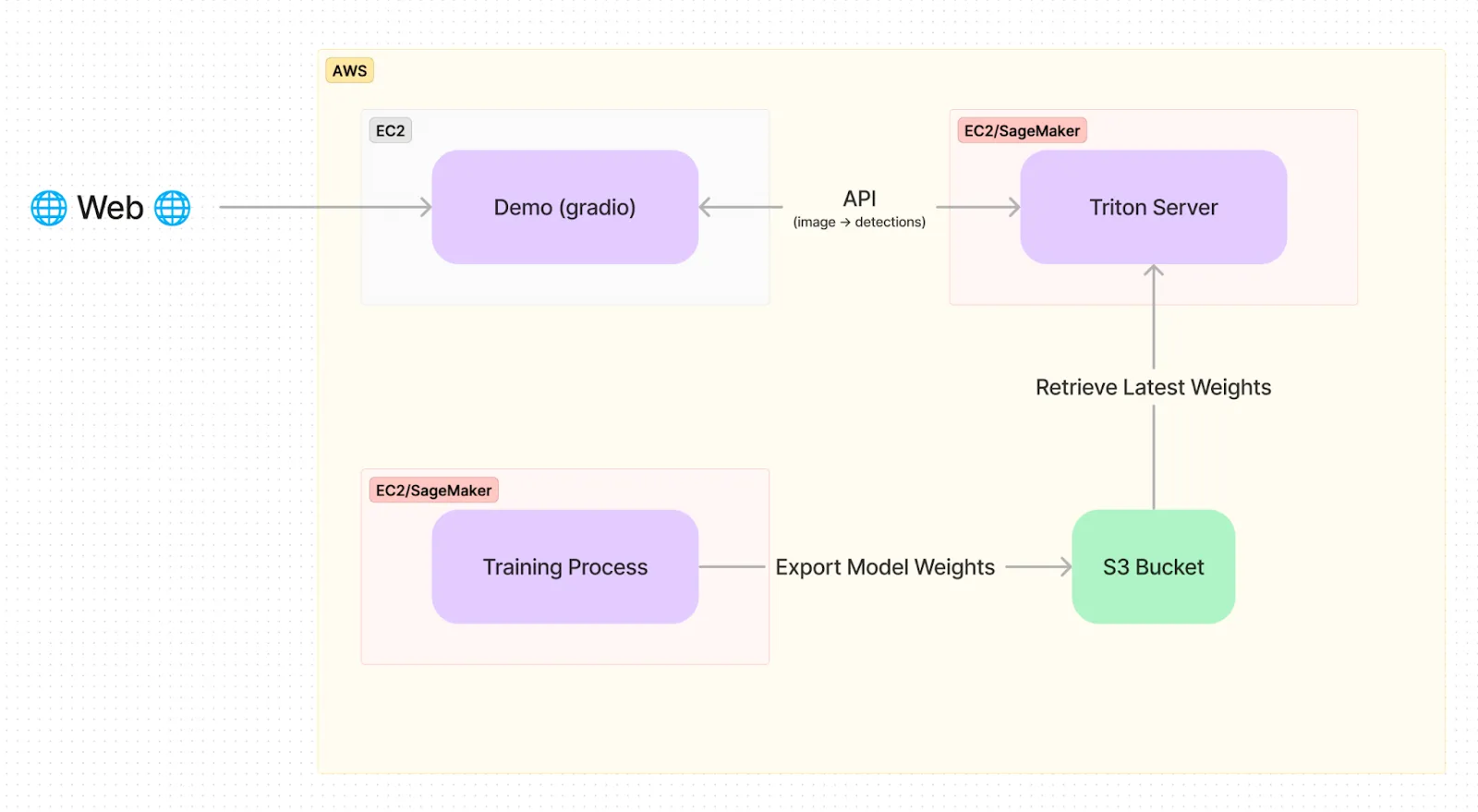

The diagram below provides a high-level overview of the AWS architecture that Neurons Lab used to deliver the PoC, including a real-time demo on gradio:

#1 Web interface

• Gradio hosted on Amazon Elastic Compute Cloud (EC2) provided the platform.
• We built the front-end demo application using this flexible interface that allows users to upload images and receive detection results via an API.

#2 NVIDIA Triton Interface Server

• We used the versatile NVIDIA Triton Interface Server, which is deployable on Amazon SageMaker and EC2.
• It supports multiple frameworks and can efficiently manage various GPUs and CPUs.
• The server retrieves the latest model weights from the Amazon S3 bucket for inference tasks.

#3 Training process

• We trained the machine learning model using EC2 and SageMaker Notebook Instances.
• Upon completion, we exported the trained model weights to the S3 bucket for storage.

#4 S3 bucket

• This bucket stores the latest model weights, and the Triton Interface Server retrieves them, ensuring it uses the most recent one for inference.

AWS diagram, predictive ai

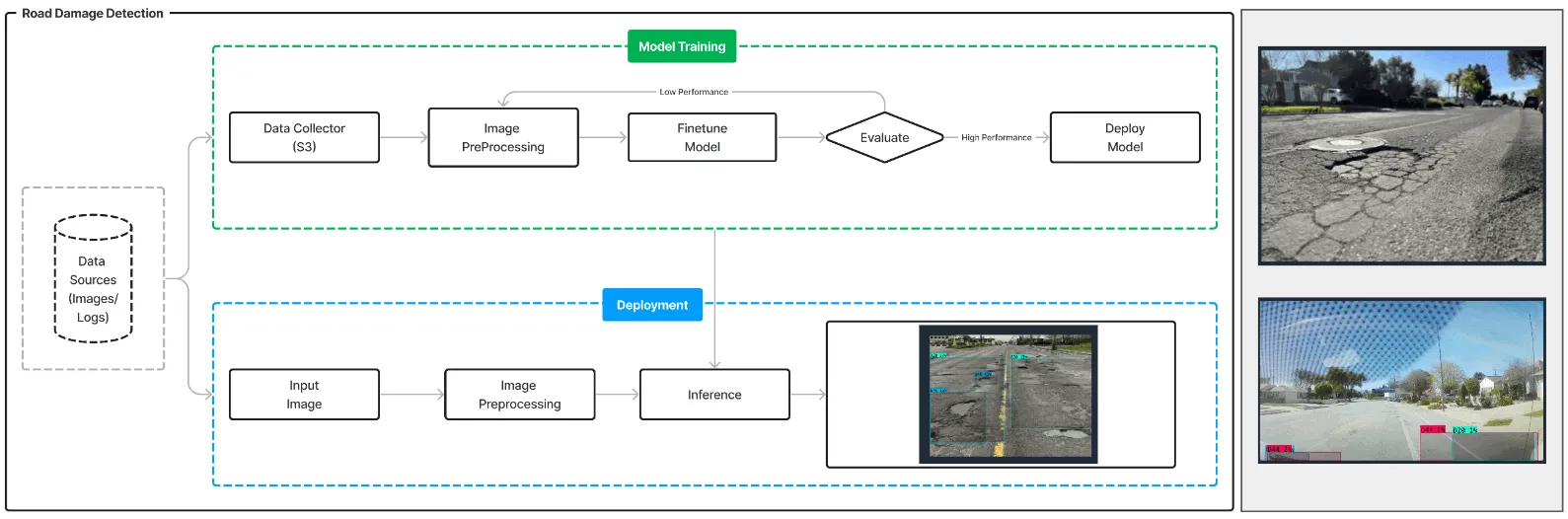

Neurons Lab set up the server using a Docker container provided by NVIDIA and configured by Ultralytics. We tested the API endpoint for inference using a YOLO v8 model for image classification and object detection.

process diagram, predictive ai

The final Road Damages detection demo visualizes driving risks by uploading images and their metadata, processing them through an API, and displaying the results on a map.

gradio app diagram, predictie ai

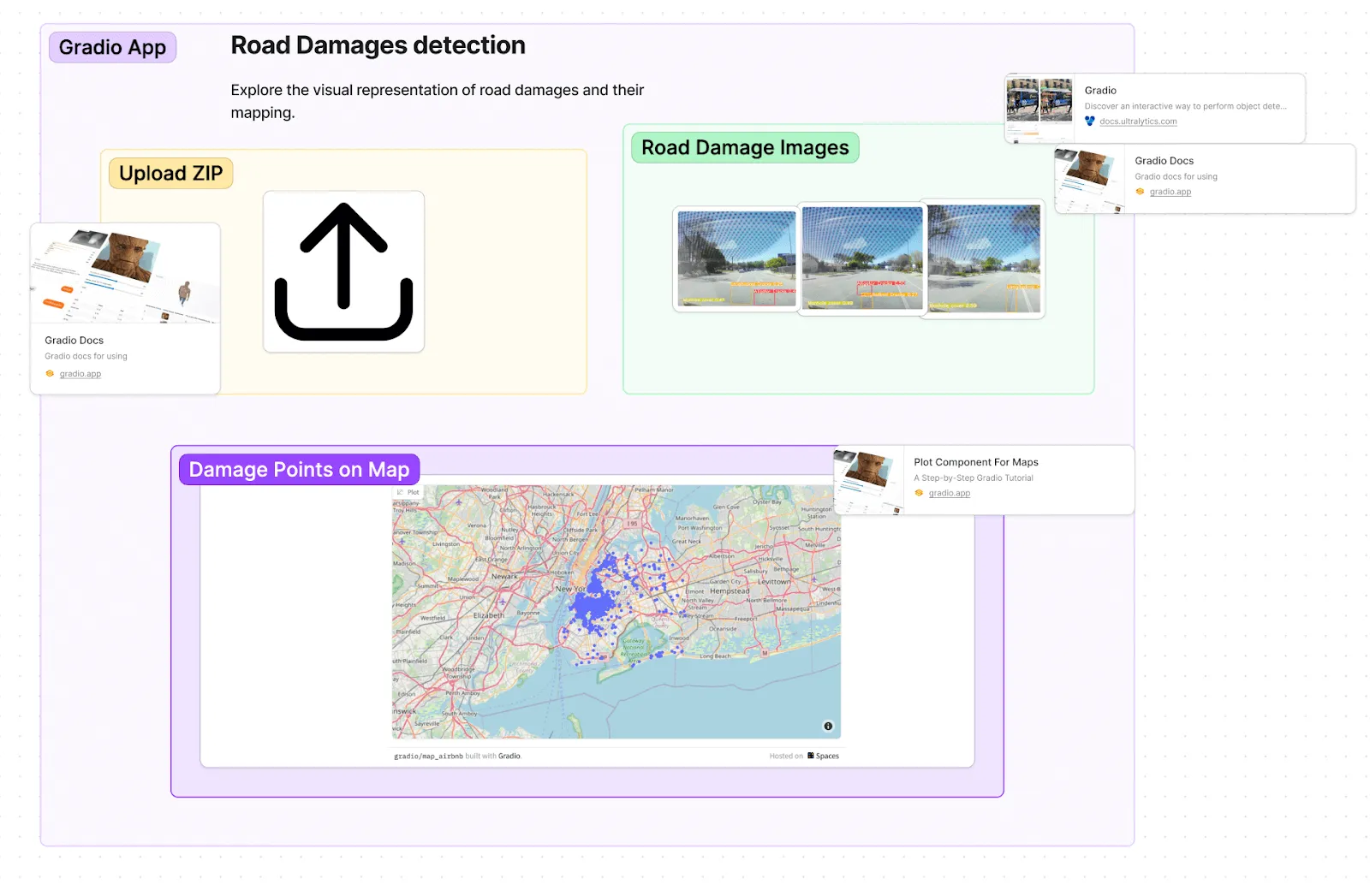

The diagram above shows a high-level overview of the user interface components and their functionalities, with the user flow as follows:

#1 Upload ZIP file

• The user uploads a ZIP file containing images and metadata.
• The uploaded ZIP file contains road damage images and metadata with GPS data for each image.

#2 Road Damage images

• The demo displays the processed images of the detected road damage.
• Once the API processes the images, it visualizes and presents them in a gallery format.

#3 Damage Points on Map

• It visualizes the GPS data on a map, showing the locations of detected road damage.
• The metadata’s GPS data plots the damage points on a map, color-coded by the type of damage.

The user interface and mapping functions were modular, allowing ASH Sensors to map other data where it could be synced with GPS locations.

The company is currently leveraging this to add an under vehicle scanning feature with a laser capable of finding damage or defects to a 1-2” resolution. It offers close to 100% detection in the laser scanned surface, compared to the industry standard of 80-90%.

Results

Neurons Lab provided a solution delivering robust AI prediction and detection of road damage – timestamped, with its location on a map via an intuitive user interface.

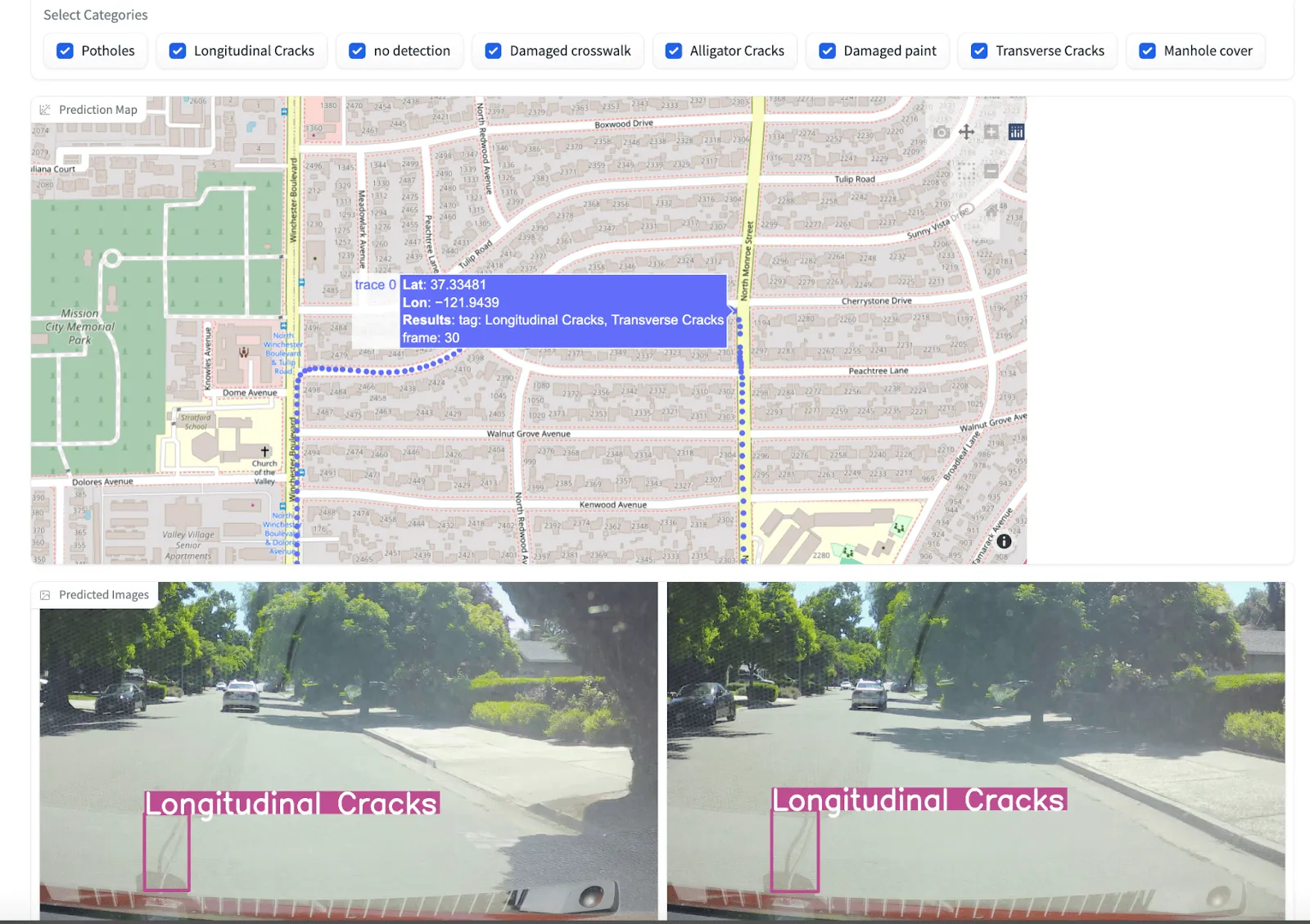

Users can filter by road damage type using clickable checkboxes:

a map and roads, predictive ai

Alongside data processing, the innovative solution involved fine-tuning and deploying the model, as well as developing the dashboard.

Final deliverables included:

• Deployed adapted object detection and classification model for ASH Sensors’ data on AWS with the API
• Streamlit demo application showcasing road damage predictions and visualizations
• Comprehensive documentation for the API
• Processed and stored sensory and image data in the S3 bucket

In addition, as a mid-project addition, we also provided functionality to update the data and add new categories to the road damage model – or even create new models – plus training to use these features.

This gave the ASH Sensors team confidence to focus on their value-add infrastructure offering, while also assuring San Jose city officials they could deliver the line items that any other vendor could.
